Fully Automatic Industrial Water Circulation Heating Control Board

liquid level data for precise temperature and level control

Fully Automatic Industrial Water Circulation Heating Control Board

Hero

The Fully Automatic Industrial Water Circulation Heating Control Board is engineered for industrial water heating and circulation systems.
Equipped with PLC control and fuzzy PID + feedforward compensation algorithm, it provides precise temperature regulation and liquid level management, ensuring stable operation and high energy efficiency.
This board is ideal for industrial water circulation heaters, hot water systems, and process heating applications, supporting optional touch-screen HMI and Modbus TCP/IP communication for seamless system integration and remote monitoring.

DatasheetGet A Quotation

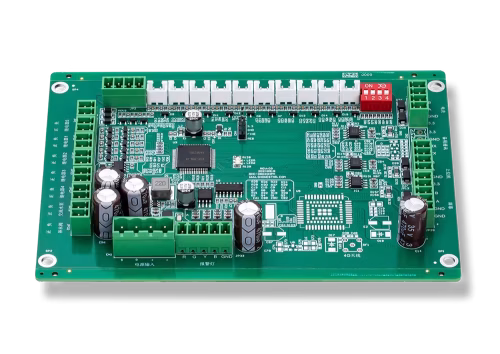

Water circulation system control board 02

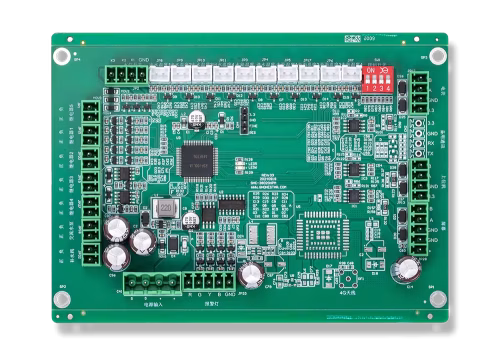

Water circulation system control board 03

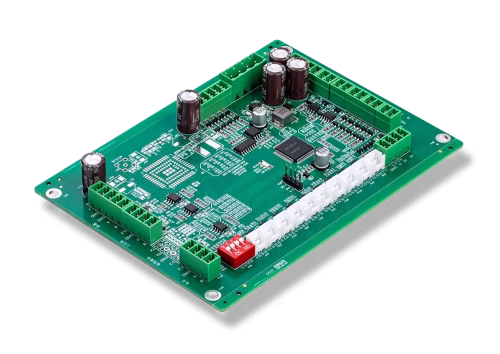

Water circulation system control board 01

Trust

Core Certification

Our Customer

Customer Testimonial

German Pool Heat Pump

PFC + Driver Board Case

“Hunovate supplied the complete PFC power and drive solution for our high-end pool heat pump. The sensorless FOC drive enabled ultra-quiet, smooth pump operation, and the high-efficiency PFC delivered excellent EMC performance—allowing us to pass stringent EU regulatory certification on the first submission.”

U.S. Premium Air Conditioner

PFC + Driver Board Case

“Our high-end AC program required exceptional energy efficiency and low acoustic performance. Hunovate’s high-efficiency PFC and FOC drive solution delivered jointly optimized results—achieving leading system-level efficiency while reducing operating noise to a remarkably low level that meets our flagship-grade requirements.”

Welling Motor

Driver Board Case

“As a motor manufacturer, precise drive matching is critical for us. Leveraging its Golden Sample Library, Hunovate quickly identified the optimal parameters, and the customized FOC algorithm fully brought out our motor’s performance. Their rapid response and results exceeded our expectations.”

HILTI Concrete Vibrator

PFC + Driver Board Case

“HILTI equipment demands exceptional reliability. Hunovate’s high-power PFC supply provided a stable power foundation, while the driver board’s algorithms—optimized for impulsive loads—enabled the system to pass rigorous shock and endurance testing, demonstrating outstanding industrial-grade reliability.”

U.K. Lawn Mower

Driver Board Case

“Our commercial high-power lawn mower operates under highly dynamic load conditions. Hunovate’s driver board, with its outstanding torque control and dynamic load handling, ensured consistent power and efficiency across all scenarios. Their professionalism and delivery speed from design to mass production were impressive.”

BLDC Motor Functional Run Test Device for AIP

Driver Board Case

“This BLDC Motor Drive-Based Functional Test Device is integrated as a core module in our standard motor testing system. Its one-button operation enables non-specialist operators to perform accurate tests, while the stable FOC algorithm reliably detects acoustic anomalies and related faults—together providing an efficient, reliable, and standardized testing solution for automated production lines.”

Benefits

Solution Features
• PLC Control + Fuzzy PID & Feedforward Compensation: precise temperature and liquid level management
• Adjustable Heating Power: 0–30kW with 32-step power modulation (design reference)
• High Energy Efficiency: >96% energy-to-heat conversion
• Multi-Layer Protection: input over/under voltage, overcurrent, dry-run protection, leakage detection, and phase sequence protection
• Industrial-Grade Reliability: MTBF >100,000 hours (design reference)
• Flexible System Integration: supports optional 4.3-inch touch screen HMI and Modbus TCP/IP
• Panel-Level IP65 Protection: water spray-resistant for industrial environments

Why Choose Our Industrial Water Circulation Heating Control Board
✅ Industrial-Grade Reliability: Designed for long-term continuous operation with MTBF >100,000 hours (design reference)
✅ Precision Temperature & Liquid Level Control: PLC + Fuzzy PID + Feedforward ensures stable and accurate heating
✅ Energy Efficient & High-Performance: Up to 96% energy-to-heat efficiency
✅ Multi-Layer Protection: Safeguards against over/under voltage, overcurrent, dry-run, leakage, and phase sequence errors
✅ Flexible System Integration: Optional touch-screen HMI and Modbus TCP/IP support for OEM/ODM industrial control
✅ Panel-Level IP65 Protection: Resistant to water spray and industrial environmental conditions
This board is not just a controller—it’s a complete high-performance solution for industrial water heating and circulation systems, ready for OEM and industrial automation applications.

Specs


Category	Parameter	Typical Value	Remarks
Input	Voltage Range	AC380V ±10% (3-phase)	Industrial grid standard
		Frequency	50/60Hz ±2%	Accurate timing control
		Rated Current	45A	Cable sizing reference
		Rated Power	3–30kW (SCR staged)	Design reference
		Efficiency	>96%	Energy-to-heat conversion
Output	Heating Power	0–30kW (32-step modulation)	Design reference, fine temperature control
		Temperature Accuracy	±0.3°C	Process quality assurance
		Pump Control Output	3 relay channels (5HP water pump)	System integration
Protection	Input Over/Under Voltage	340V / 440V	Grid fluctuation protection
		Overcurrent	120% 10s	Heating element short-circuit protection
		Dry-Run Protection	Liquid level sensor linked	Prevents heating tube damage
		Leakage Protection	30mA/0.1s (IEC 60730)	Industrial safety standard
		Phase Sequence Protection	Automatic correction	Installation tolerance
Environment	Operating Temperature	-10–70°C	Boiler room and industrial environment
		Operating Humidity	5–95% RH	Steam-resistant
		Vibration	10–55Hz, 1.0G	Pump room vibrations
Other	Topology	SCR power control + PLC	Industrial-grade architecture
		Control Algorithm	Fuzzy PID + Feedforward	Fast response, anti-interference
		Communication Protocol	Modbus TCP/IP	PLC system integration
		HMI Interface	4.3-inch touch screen (optional)	On-site parameter setting
		Protection Grade	IP65 (panel)	Water spray-resistant

Download full datasheet (PDF)
