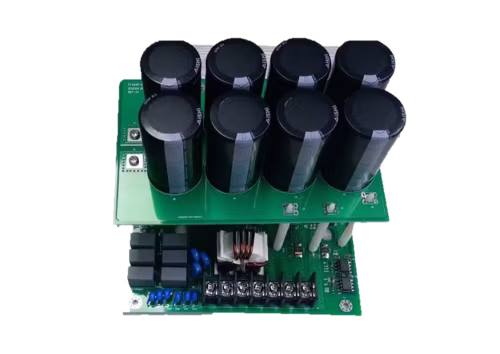

18kW Industrial Fan Variable Frequency Drive (VFD)

Intelligent Motor Control for Energy-Efficient HVAC & Industrial Ventilation Systems

18kW Industrial Fan Variable Frequency Drive (VFD)

Overview

Looking for a high-performance drive to power your industrial fans, pumps, or HVAC systems?
Our 18kW Industrial Fan Variable Frequency Drive delivers precision speed control, optimized energy savings, and rock-solid reliability — engineered for continuous operation in demanding environments.
Whether you’re an OEM manufacturer, system integrator, or industrial equipment builder, this VFD ensures maximum efficiency, protection, and control — all in one compact, intelligent design.

⚙️ Applications

The 18kW Fan Drive is built for medium- to high-power motor control across a wide range of industries, including:
– HVAC & Heat Pump Systems — precise air volume control, improved efficiency
– Industrial Ventilation & Exhaust Systems — reliable operation under long duty cycles
– Water Pumps & Cooling Towers — smooth soft-start, lower energy consumption
– Factory Automation & Environmental Equipment — stable motor performance and protection

💡 Core Technologies

Our VFD integrates advanced digital motor control and industrial-grade protection into a single, compact module.
Built on decades of motion control expertise, it combines power and precision:

• Advanced Sensorless FOC Control:
Accurate torque and speed regulation — even without an encoder.
Stable startup for high-inertia fan loads.
Smooth operation with low acoustic noise and reduced motor heating.

• High Efficiency & Low Loss:
Up to 96–97% conversion efficiency for reduced operational cost.
Optimized carrier frequency (8–16kHz) for noise–efficiency balance.
Two-level inverter topology ensures economic, robust performance at 18kW class.

• Comprehensive Protection:
Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Phase Loss, and Overtemperature protection.
Hardware-level IGBT short-circuit protection (<2µs response).
Thermal derating above 85°C for enhanced lifespan.

• Industrial Connectivity:
Built-in CANopen communication.
Optional Modbus RTU for easy system integration.
Compatible with most industrial control systems.

Why Choose Our 18kW Fan Drive

✅ Industrial-Grade Reliability: MTBF > 200,000 hours @25°C
✅ Global Certifications: CE & UL 61800-5-1 compliant
✅ Compact Design: IP20-rated, cabinet-mounted for easy integration
✅ OEM Ready: Ideal for equipment manufacturers seeking a proven drive solution
✅ Energy Savings: Reduce operating cost and extend motor lifetime
✅ Expert Support: 20+ years of experience in motor control & power electronics
Our product isn’t just a frequency converter — it’s a complete fan drive solution designed for modern energy-efficient systems.

Get a Quote or OEM Service

Looking for a reliable VFD supplier or OEM drive partner?
We specialize in customized inverter solutions for HVAC, fan, and pump applications.
📩 Contact us today to discuss your project requirements —our engineering team can tailor control boards, firmware, and communication interfaces for your specific needs.

Parameters


Category	Parameter	Specification
Input	Voltage Range	AC 380 V ±10% / Three-Phase
		Rated Current	48 A
		Rated Power	18 kW
		Power Factor	> 0.95
		Inrush Current	≤ 2× rated current (soft-start)
Output	Voltage	AC 0 – 380 V three-phase
		Rated Current	35 A
		Rated Power	18 kW
		Frequency Range	0 – 400 Hz
		Output THD	< 5 %
		Carrier Frequency	Adjustable 8 – 16 kHz
Protection	Input UV/OV Trip	300 V / 460 V
		Output Overcurrent	150 % 3 s / Instant 200 %
		Overload Capacity	120 % 60 s / 150 % 3 s
		Short Circuit	Hardware protection < 2 µs
		Over-Temperature	85 °C derating / 95 °C shutdown
		Output Phase Loss	Shutdown within 2 s
Environmental	Operating Temp.	–10 °C ~ +50 °C (derate above 50 °C)
		Humidity	20 % – 90 % RH (non-condensing)
		Storage Temp. / Humidity	–40 °C ~ +85 °C, ≤ 85 % RH
		Vibration	5 – 200 Hz, 1.5 G (IEC 60068-2-6)
General	Topology	Two-level inverter
		Control Algorithm	Sensorless FOC + Sliding Mode Observer
		Communication	CANopen / optional Modbus RTU
		Enclosure Rating	IP20 (cabinet mount)
		Certification	CE, UL 61800-5-1
		Dimensions	400 × 200 × 150 mm
		MTBF	> 200,000 hours (@25 °C)

Resources

18kW Industrial Fan Variable Frequency Drive (VFD)

Datasheet Block Diagram
