Overview

3 kW Single-Phase Digital PFC Front-End Rectifier Module

The 3 kW Single-Phase Digital PFC Module is a high-efficiency active rectifier designed to convert AC 90 – 264 V into a stable DC 400 V bus.
Using bridgeless Totem-Pole PFC topology with GaN / SiC devices, it achieves up to 98 % efficiency and PF > 0.99, delivering ultra-clean power for industrial motor drives, HVAC compressors, and energy-storage systems.

⚙️ Applications

– Single-phase high-power motor drives, servo systems, and VFDs
– HVAC and heat-pump AC-DC front-end converters
– Photovoltaic / energy-storage inverter systems (ESS front-end)
– UPS systems and industrial control power supplies
– Industrial test power supplies and digital-power training platforms

💡 Core Technologies

• Bridgeless Totem-Pole PFC Topology — ultra-high efficiency and low THD (< 3 %).
• Digital DSP Control — fast current-loop response < 2 ms, stable bus regulation.
• GaN / SiC Power Devices — higher switching speed, lower loss, smaller size.
• Universal Input AC 90 – 264 V — worldwide grid compatibility.
• Smart Communication: Wi-Fi / RS-485 (Modbus RTU) / TTL.
• Comprehensive Protections: OVP, UVP, OCP, OTP, SCP, overload.
• Optional Bidirectional Power Flow (DC ↔ AC) for regenerative energy feedback.

🔰 Why Choose Our 3 kW PFC Module
✅ Compact design: 200 × 150 × 40 mm footprint for easy OEM integration.
✅ Energy savings: 97 – 98 % conversion efficiency reduces heat and power loss.
✅ Flexible cooling options: air or liquid cooling for different system layouts.
✅ OEM-ready: easily customized bus voltage, interface, and thermal design.
✅ Industrial-grade reliability: MTBF > 150 000 h, proven in continuous operation.
✅ Perfect for HVAC, industrial automation and ESS manufacturers seeking high-power-factor front-end solutions.

📩 Get a Quote or OEM Service

Partner with an experienced PFC and motor-drive solution manufacturer.
Contact us for datasheets, pricing, samples, or OEM/ODM customization of your AC-DC front-end power modules.
👉 Email us today to discuss your motor drive, HVAC or energy storage project!

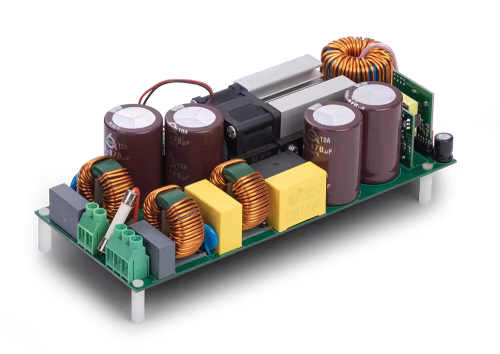

3kw single phase pfc digital power board 01

3kw single phase pfc digital power board 02

3kw single phase pfc digital power board 03

Parameters


Category	Parameter	Specification / Description
AC → DC (PFC Mode)	Input Voltage Range	AC 90 – 264 V (single-phase)
		Frequency Range	47 – 63 Hz
		Rated Input Power	3.0 kW
		Power Factor	> 0.99 (@ 230 V full load)
		Efficiency (Typ.)	97 % (@ 230 V, 50 % load)
		Total Harmonic Distortion	< 3 % (Compliant with EN 61000-3-2 Class A)
		Output Voltage	DC 400 V ± 1 %
		Output Current	7.5 A continuous, 8.5 A peak / 10 s
DC → AC (Inverter Mode, Optional)	Input Voltage Range	DC 360 – 430 V
		Rated Power	3.0 kW continuous, 3.3 kW peak / 10 s
		Output Voltage	AC 220 V ± 2 %
		Output Frequency	50 / 60 Hz ± 0.1 %
		Efficiency	94 % (typical)
		THD	< 3 % (linear load)
Protection Functions	AC UVP / OVP	Trip at 85 V / 280 V
		DC UVP / OVP	Trip at 350 V / 450 V
		Over-current	110 % limiting → 120 % × 60 s shutdown
		Short-circuit	Hardware fast shutdown < 1 ms
		Over-temperature	Derating at 85 °C / shutdown at 95 °C
Control & Communication	Interface	Wi-Fi, RS-485 (Modbus RTU), TTL
Control & Communication		Control Algorithm	Dual-loop digital PFC control, current-loop < 10 ms
Mechanical & Environmental	Operating Temperature	−20 °C ~ +50 °C (derate > 50 °C to 70 °C)
		Protection Level	Board IP20 / System recommended IP54
		Dimensions	200 × 150 × 40 mm
		Weight	≈ 1.2 kg
		MTBF	> 150 000 h (@ 25 °C)
Compliance & Safety	Safety	IEC 62368-1 / UL 62368-1
		EMC	EN 61000-6-2 / 6-4, EN 55032 Class B
		Environmental	RoHS / REACH compliant

Resources

3 KW Single-Phase PFC Digital Power Supply Module

Datasheet Block Diagram
